Detailed Overview of Automotive Industry Castings and Raw Cast Iron Requirements

Automotive Industry Castings are crucial components used in the manufacturing of vehicles, ranging from engine parts to structural components. Here’s a detailed explanation of the major products in automotive castings and the specific requirements for raw cast iron used in their production.

Major Products in Automotive Industry Castings

Automotive castings are essential for producing various automotive parts. These parts are typically cast from raw iron and other alloys, and each product serves a distinct function in the vehicle. Below are the main categories of automotive castings:

Engine Components:

Engine Blocks: These house the pistons, crankshaft, and other components, enduring extremely high mechanical stress. They require high strength and good vibration resistance.

Cylinder Heads: These seal the combustion chamber and endure high thermal and mechanical pressures. They are typically made from cast iron or aluminum alloys and must possess excellent high-temperature resistance and fatigue strength.

Crankshafts and Connecting Rods: These components transfer force between the engine parts and bear significant loads. They require high bending and tensile strength.

Valve Seats and Valves: These withstand high temperatures and mechanical stress. They must offer wear resistance, corrosion resistance, and thermal stability.

Oil Pans: These store engine oil and are typically made from cast iron or aluminum alloys. They require corrosion resistance and sufficient strength.

Transmission System Components:

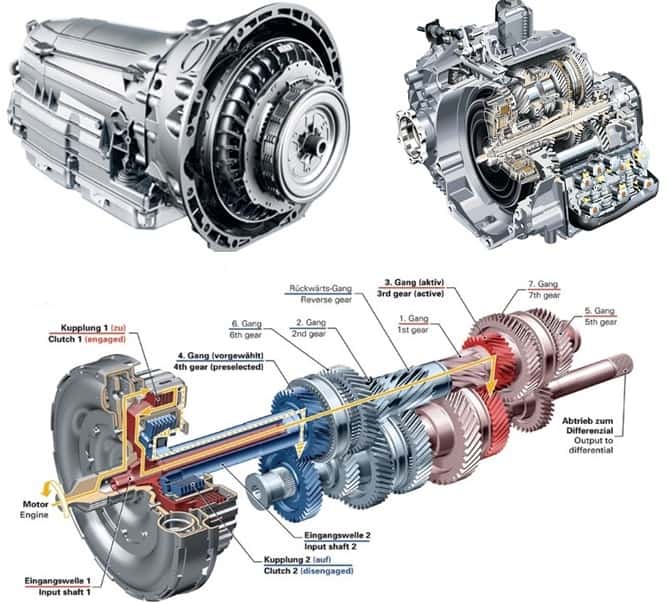

Transmission Cases: These cases house the gears and shafts of the transmission. Cast iron or aluminum alloys are used to make these components, which must have good strength, wear resistance, and high-temperature properties.

Gears and Shafts: Gears and shafts transfer torque, and they require high strength and wear resistance. They are typically cast from high-carbon alloys or steel.

Suspension and Steering System Parts:

Control Arms: These connect the vehicle's wheels to the frame and must withstand vehicle weight and vibration. They require high toughness and fatigue resistance.

Axles and Hubs: These parts transfer torque and bear vehicle load. Cast components require excellent tensile strength and impact resistance.

Steering Gear Housing: These parts need to be stiff and stable for accurate steering.

Brake System Components:

Brake Discs and Drums: These are vital components of the braking system and must have excellent wear resistance, heat resistance, and thermal stability for efficient braking.

Exhaust System Components:

Exhaust Manifolds: These parts collect exhaust gases from the engine and require high-temperature resistance, corrosion resistance, and structural strength.

Catalytic Converter Housings: These housings enclose the catalytic converter and need good corrosion resistance and high-temperature stability.

Other Structural Parts:

Chassis Frames and Interior Components: These include parts like door frames and engine supports. They require good strength, toughness, and precision.

Support Brackets: Components like engine mounts require sufficient rigidity and load-bearing capacity.

Requirements for Raw Cast Iron Used in Automotive Castings

Raw cast iron is one of the primary materials used for automotive castings. The quality of cast iron directly affects the performance and longevity of the cast components. Below are the detailed requirements for raw cast iron used in automotive castings:

1. Chemical Composition Requirements

The chemical composition of cast iron is critical to the properties of the final casting. The following are the typical elements and their required ranges:

Carbon Content (C):

Cast iron typically contains 2.5% to 4.0% carbon, depending on the casting's requirements. Carbon influences hardness, strength, and ductility by forming graphite or other carbides.

Gray Cast Iron: Commonly used for general automotive parts like engine blocks and cylinder heads, with carbon content around 2.7%–3.5%.

Ductile Cast Iron (Nodular Cast Iron): Used for high-strength parts such as steering knuckles and brake discs, with carbon content controlled at 3.0%–3.8%.

Silicon Content (Si):

Silicon improves castability by increasing the fluidity of molten iron. Typically, the silicon content is between 1.0% and 3.0%.

Higher silicon content improves flowability but may reduce strength.

Manganese Content (Mn):

Manganese enhances the de-sulfurization and de-phosphorization of cast iron, improving its toughness. The typical manganese content is between 0.5% and 1.0%.

Phosphorus Content (P):

Phosphorus is a harmful impurity that makes cast iron brittle. It should be controlled to less than 0.1%.

Sulfur Content (S):

High sulfur content makes cast iron brittle and prone to cracking. It is typically kept below 0.02%.

Magnesium Content (Mg) (for Ductile Cast Iron):

Magnesium is used to convert graphite in cast iron into a nodular form, improving strength and toughness. The typical magnesium content is between 0.03% and 0.05%.

Other Alloying Elements (such as Chromium Cr, Copper Cu, Molybdenum Mo):

Chromium: Adds wear resistance and is commonly used in brake discs, engine blocks, and other components.

Copper: Improves corrosion resistance and is used for water-contact parts like water pump housings.

Molybdenum and Titanium: Improve strength, high-temperature resistance, and fatigue resistance.

2. Physical Properties Requirements

The physical properties of cast iron directly influence the quality of the casting:

Tensile Strength:

Cast iron typically requires a tensile strength of 150-500 MPa, depending on the part’s function. High-strength parts like engine blocks, axles, and transmission components need higher tensile strength.

Hardness:

Cast iron’s hardness is typically controlled between 200 and 300 HB, with higher hardness required for components subject to wear, such as brake discs and valve seats.

Toughness:

Parts subjected to vibration or impact (e.g., axles, control arms) require good toughness to prevent cracking or breakage. Toughness is enhanced by controlling carbon content, alloying elements, and the casting process.

Wear Resistance:

Components such as brake discs and engine blocks must have high wear resistance. This is typically achieved by adding elements like chromium, molybdenum, and copper to improve resistance to wear.

3. Casting Performance Requirements

The casting performance of raw iron affects the quality of the final product:

Flowability:

The flowability of cast iron determines how well the molten metal can fill the mold, especially for complex shapes. Good flowability ensures that the mold is completely filled, reducing defects like porosity and cold shuts.

Shrinkage:

Shrinkage is the physical change that occurs during solidification. Excessive shrinkage can lead to deformation or cracking of the casting. Shrinkage is controlled by adjusting the chemical composition and casting process.

Porosity and Cracking Control:

Porosity and cracking are common defects in castings, especially when gas pockets form during solidification. High-quality cast iron should have low gas content to prevent these defects.

4. Heat Resistance and Corrosion Resistance

Automotive components like engine blocks, exhaust manifolds, and brake discs are exposed to high temperatures. Therefore, cast iron must have good heat resistance and the ability to withstand thermal cycling. Additionally, parts like water pump housings and exhaust manifolds must possess corrosion resistance to prevent degradation in harsh environments.
